SKF軸承FBSA209/QFC
FBSA209/QFC軸承
更新日期：2016/8/8 手機版：FBSA209/QFC軸承 點擊量提醒：上表僅提供基本尺寸，由于SKF公司在角接觸推力球軸承 for screw drives, cartridge units with flanged housing產品上持續的工藝改進，F(xiàn)BSA209/QFC軸承的內部設計可能有所改變，但這不影響SKF FBSA209/QFC軸承的基本尺寸結構，若無特殊要求，您可以放心選用此型號。
- 型號：FBSA209/QFC
- 品牌：SKF
- 系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- 內徑：45 mm
- 外徑：124 mm
- 厚度：106 mm
【電話：020-36026999】

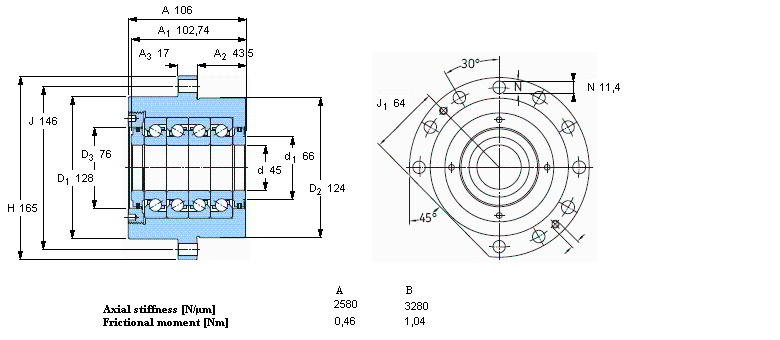

FBSA209/QFC軸承尺寸表
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 45 | 124 | 106 | 73,35 | 268 | 9,8 | 3150 | 1575 | 9,4 | FBSA 209/ QFC | BSQU 245 TFT | |
FBSA209/QFC相同內外徑、厚度
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- SKF
- FBSA209/QBC軸承
- 45
- 124
- 106
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA209/QFC軸承
- 45
- 124
- 106
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
FBSA209/QFC軸承品牌互換
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- SKF
- FBSA209/QFC軸承
- 45
- 124
- 106
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
