SKF軸承BEAM030100-2RS
BEAM030100-2RS軸承
更新日期：2016/8/8 手機版：BEAM030100-2RS軸承 點擊量提醒：上表僅提供基本尺寸，由于SKF公司在角接觸推力球軸承 for screw drives, double direction, for bolt mounting產品上持續(xù)的工藝改進，BEAM030100-2RS軸承的內部設計可能有所改變，但這不影響SKF BEAM030100-2RS軸承的基本尺寸結構，若無特殊要求，您可以放心選用此型號。
- 型號：BEAM030100-2RS
- 品牌：SKF
- 系列：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- 內徑：30 mm
- 外徑：100 mm
- 厚度：38 mm
【電話：020-36026999】

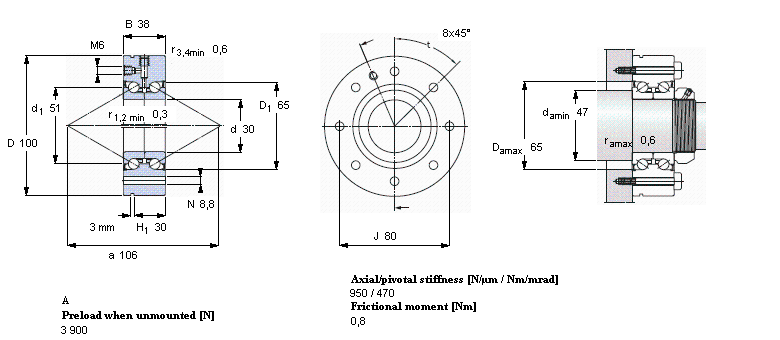

BEAM030100-2RS軸承尺寸表
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態(tài) | 靜態(tài) | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 30 | 100 | 38 | 60 | 108 | 4 | 2600 | 1,65 | BEAM 030100-2RS | BEAM 30/100/C 7P60 | |
BEAM030100-2RS相同內外徑、厚度
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- INA
- ZKLF30100-2RS軸承
- 30
- 100
- 38
- 推力角接觸球軸承
- INA
- ZKLF30100-2Z軸承
- 30
- 100
- 38
- 推力角接觸球軸承
- FAG
- ZKLF30100-2RS軸承
- 30
- 100
- 38
- 推力角接觸球軸承
- FAG
- ZKLF30100-2Z軸承
- 30
- 100
- 38
- 推力角接觸球軸承
- SKF
- BEAM030100-2RS軸承
- 30
- 100
- 38
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM030100-2Z軸承
- 30
- 100
- 38
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
BEAM030100-2RS軸承品牌互換
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- SKF
- BEAM030100-2RS軸承
- 30
- 100
- 38
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
